KICAD tip 3 :

Merging top and bottom pcb postscript files :

• First plot top and bottom pcb to Postscript file (check mirror box) :

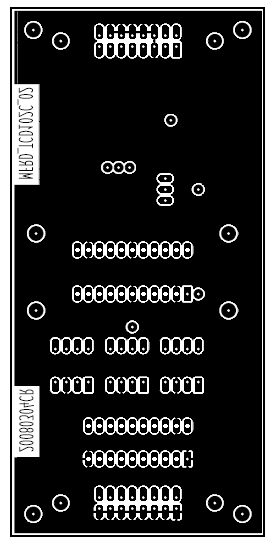

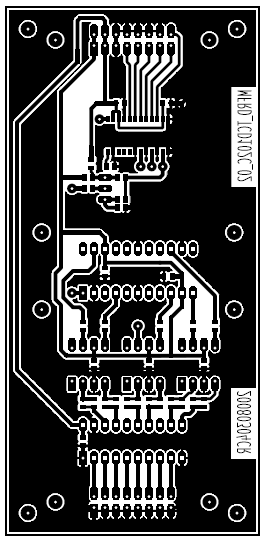

	Top PCB : Original Top.ps		Bottom PCB : Original Bottom.ps



• Edit each Postscript file and insert text in red :

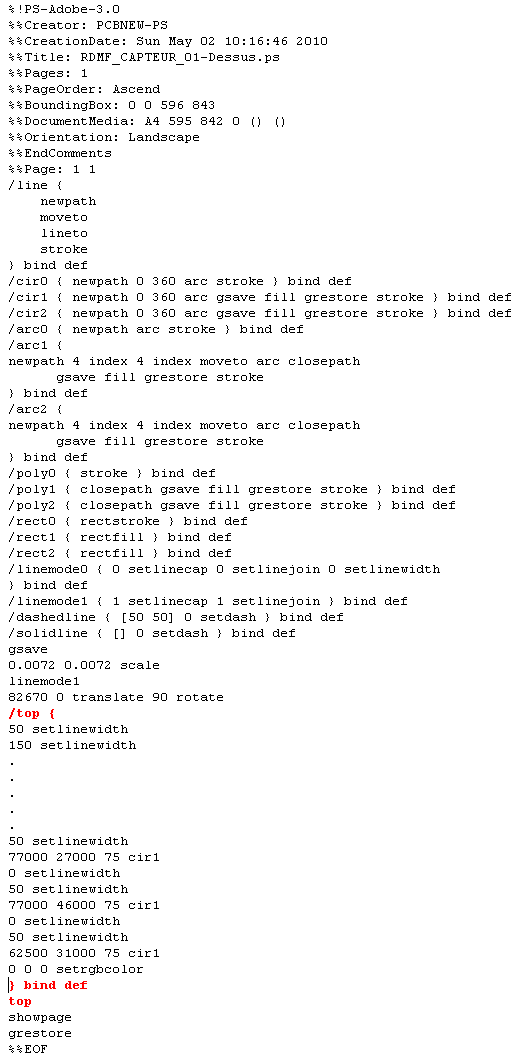

Top PCB : Modified Top.ps

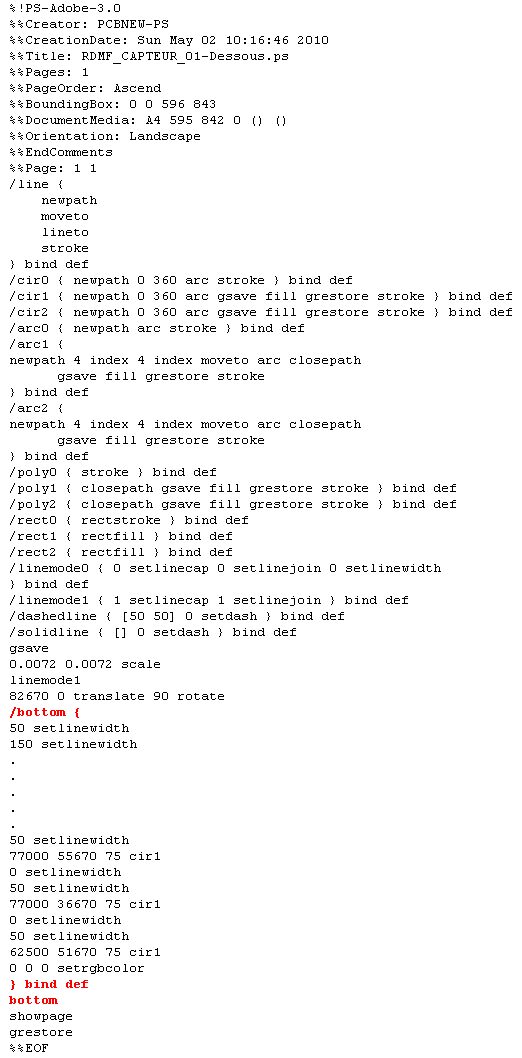

Bottom PCB : Modified Bottom.ps




Displaying these files should show same as original files.



• Duplicate your <Top>.ps file to <Top+Bottom>.ps file.

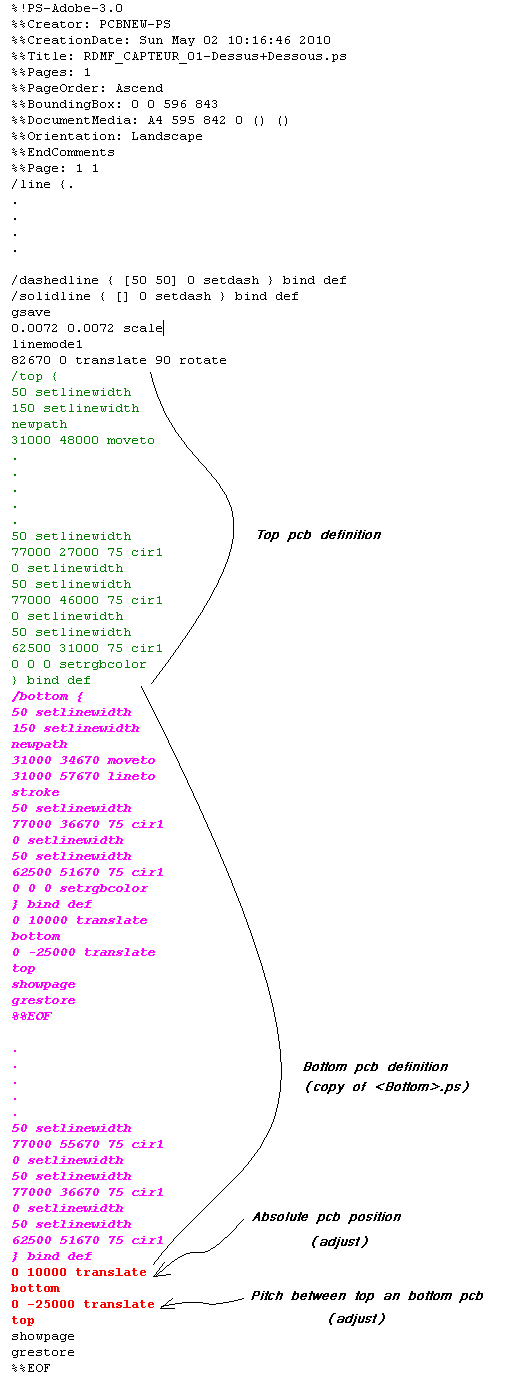

• Edit <Top+Bottom>.ps file. Insert a copy of the content of the bottom pcb and Insert text in red :

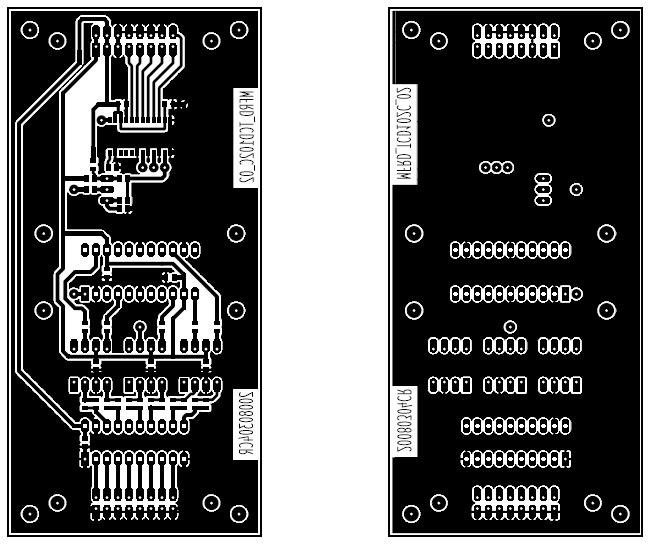

	Top+Bottom PCB : Top+Bottom.ps



• You have to adjust pitch and perhaps position to fit into page.



That's all !
