Welcome to my KICAD corner

Quickly build your library symbols : quicklib

  • assign pin names and orientation
  • choose pin format (inverted, clock, ...)
  • choose pin type (input, output, power, 3-state, ...)
  • preview
  • multipart support
  • import pin list
  • enable/disable pin for bga/pga

Previous version : quicklib_old

Quickly build your PCB modules :

  • choose pad format (round, square, ...)
  • choose pad type (TH, smd, connector, ...)
  • assign pad position, size, orientation
  • preview
  • includes millimeters to mils converter

Beta version : quickmod

 ...

KICAD tips :

  empty plus empty egal empty
  empty adc empty
  empty root empty
  empty empty empty

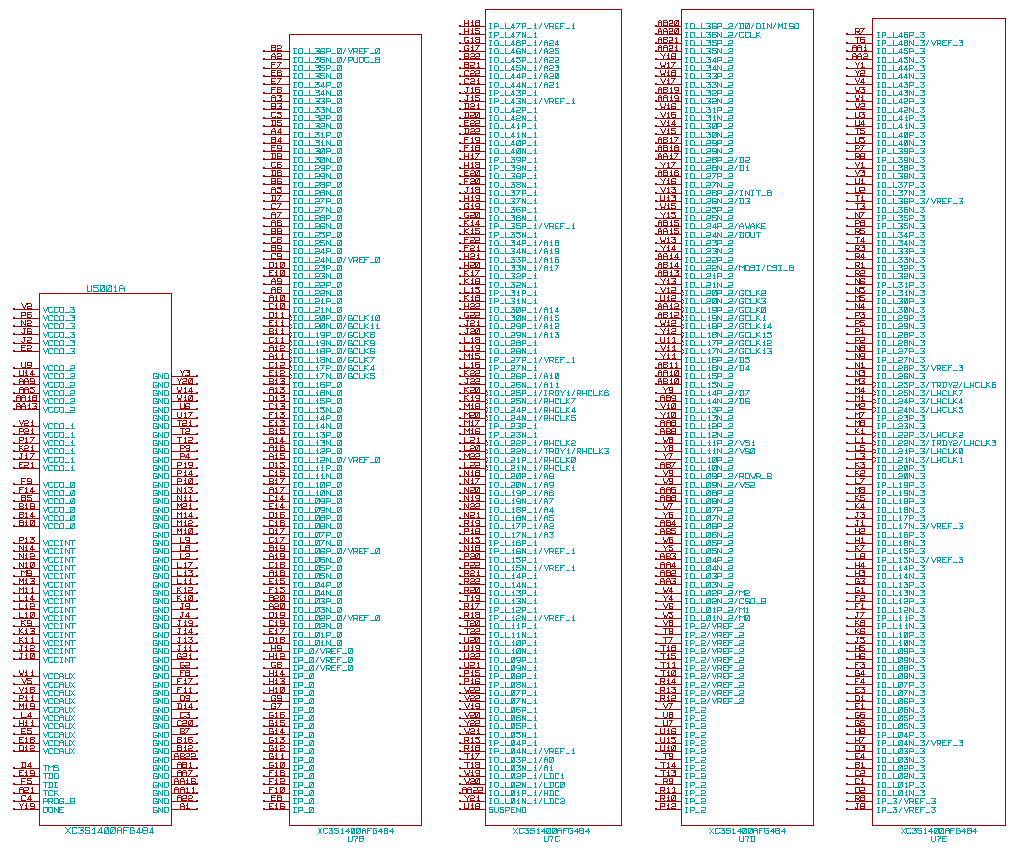

spartan

 ...
